Penta Machine Co.

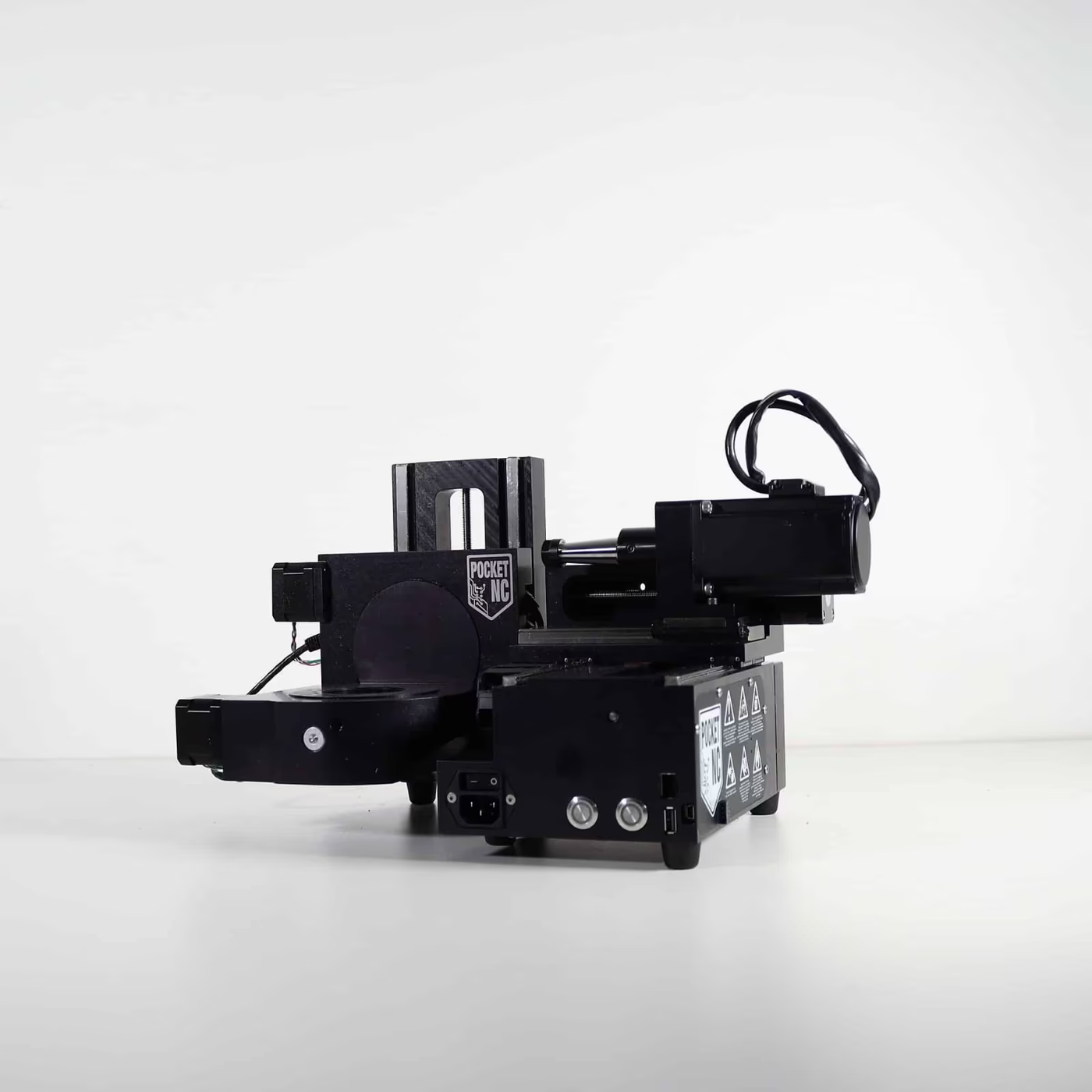

Pocket NC V2-10 · 5-Axis Desktop CNC Mill
The world's first 5-axis desktop CNC mill — full-package edition. Pocket NC V2-10 + original white enclosure + Kinetic Control (latest) + XYZ probe + tool holders + endmills + fixture + raw material. Nearly new condition.
Buying in Europe? Get a personal quote — EUR invoicing, no US customs, local support, usually within one business day. Request a Quote →
Full package contents
| Included | |
|---|---|
| ✓ | Pocket NC V2-10 — nearly new, fully functional |
| ✓ | Original enclosure — white, acrylic viewing window |
| ✓ | Kinetic Control Software — latest version, licensed (TCPC included) |
| ✓ | XYZ probe — for precise tool referencing |
| ✓ | Endmill / cutter set — multiple sizes |
| ✓ | Tool holders & collets — long + short, ER11 / ER40 |
| ✓ | Fixture / workholding — workpiece clamping included |
| ✓ | Raw material — aluminium, Delrin and more |
Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Penta Machine Co. (formerly Pocket NC), Belgrade, Montana USA |
| Model | Pocket NC V2-10 |
| Axes | 5 (X, Y, Z, A, B) — simultaneous & 3+2 |
| Spindle | 10,000 RPM |
| Travel X / Y / Z | 115.5 mm / 128.3 mm / 90.1 mm |
| Collet | ER11 (1/8″) |
| Controller | Standard G-Code · Kinetic Control (TCPC) |
| Connectivity | Ethernet / USB |
| Power | 230 V — standard household socket (no 3-phase) |
| Materials | Delrin, aluminium, soft steel, up to G5 titanium |
| Compressed air | Not required (V2-10) |
| Software | Kinetic Control — latest version (included & licensed) |
| Footprint | Compact desktop — fits standard workbench |
| Penta factory warranty | 1 year limited |
| CycleCNC EU warranty | 6 months (AGB §8(3)(e)) |
Why a full-package machine
The Pocket NC V2-10 is the world's most-sold 5-axis desktop CNC mill — not a toy, a real production machine. Runs on a normal 230 V household socket. Accepts standard G-code. Equipped with Kinetic Control software (TCPC).
Typical applications:
- Precision parts in aluminium, stainless steel, Delrin, plastics
- Prototypes, jewellery, medical-device parts, watch components, small-batch production
- Education, research, engineering, product development
Why 5 axes? Complex parts in one setup — no re-clamping, no per-side fixtures, fewer errors, more precision.
See it in action
EU support included
- Köln-based stock for same-day spare-parts shipping
- Email + phone support in English, German, French (sales@cyclecnc.com)
- Direct backline to Penta Machine engineering for complex issues
- Free first-power-on video walkthrough on delivery
- Optional annual maintenance contract at €1,000/yr
- Owner Slack invite within 7 days of delivery
- Free owner training course (password supplied at delivery)
FAQ
Is this a new or used machine?
This package is sold as nearly new (fast neuwertig): fully functional, complete accessory bundle, latest licensed software. Penta-Machine factory calibration data on file. On-site demo and inspection available in Köln by appointment.
Will it run from a normal wall socket?
Yes — 230 V single-phase Schuko. Under 800 W draw. No 3-phase needed. No compressed air needed for the V2-10.
Demo / inspection?
Available by appointment at our Köln facility. Email sales@cyclecnc.com.
Request CAD files, postprocessors, drawings or tooling library
Pick what you need and we'll email it back. Replies within one working day.
